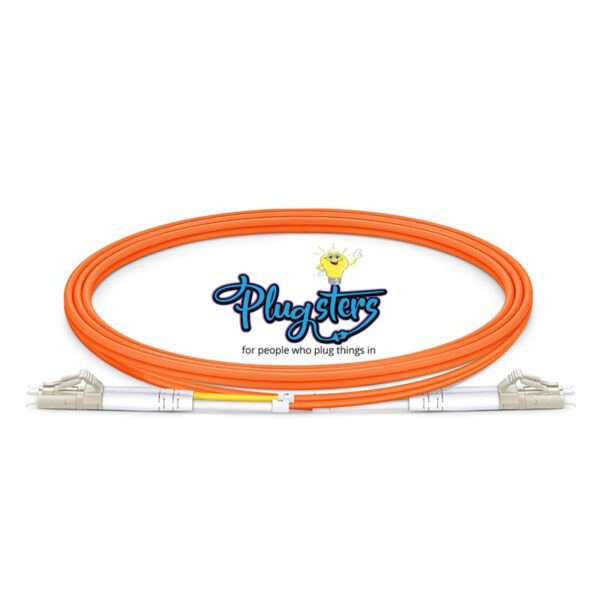

OM2 Multimode Duplex LC/UPC to LC/UPC Patch Cables

$13.80 – $60.60

Specifications:

Connector Type: LC/UPC to LC/UPC

Fiber Grade: Bend Insensitive

Fiber Count: Duplex

Fiber Mode: OM2 50/125μm

Wavelength: 850/1300nm

1G Ethernet Distance: 550m at 850nm

Insertion Loss: ≤0.3dB

Return Loss: ≥30dB

Min. Bend Radius: (Fiber Core) 7.5mm

Min. Bend Radius: (Fiber Cable) 20/10D (Dynamic/Static)

Attenuation at 850nm: 3.0 dB/km

Attenuation at 1300nm: 1.0 dB/km

Cable Jacket: PVC

Cable Diameter: 2.0mm

Polarity: A (Tx) to B (Rx)

Operating Temperature: -20~70°C

Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss during cable bending and easily meet your diverse cabling requirements.

90-150N Tensile Strength

The pull-resistant cable prevents cable breaking and prolongs the service life.

Zirconia Ceramic Ferrule

The precision ferrules can reach up to 500 times insertion lifespan.

2.0mm Slim Cable

The 2.0mm cable can reduce the pressure of the wiring conduit.

Spine-Leaf Architecture Achieve Larger Network Scale
Prevent network bottlenecks, reduce network latency, and expanding bandwidth and scalability for future network expansion.
SKU: P2P43173 Category:

OM2 Multimode Duplex LC/UPC to LC/UPC

PVC (OFNR) 2.0mm Fiber Optic Patch Cable

High Quality and Cost-effective 62.5/125μm OM2 Multimode Fiber Optic Cable

The 62.5/125μm OM2 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.

This 62.5/125 OM2 multimode fiber optic cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.

Patch Cord Lengths

.5m (1.6'), 1m (3'), 1.5m (5'), 2m (7'), 3m (10'), 4m (13'), 5m (16'), 7m (23'), 8m (26'), 10m (33'), 15m (49'), 20m (66'), 25m (82'), 30m (98')
