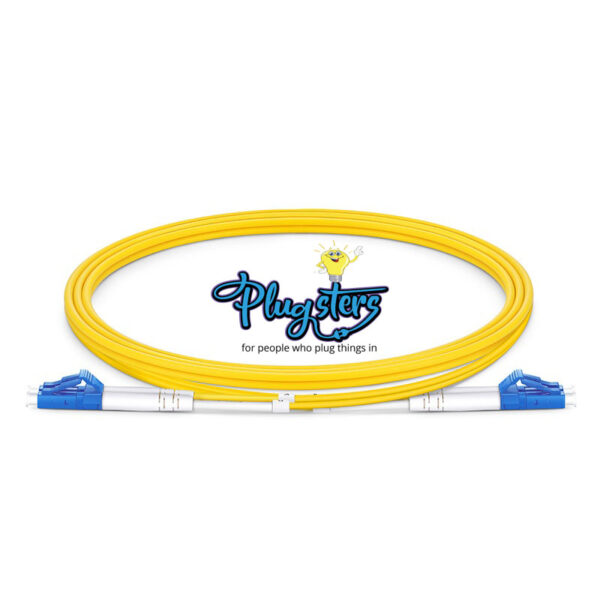

OS2 LC/UPC to LC/UPC Duplex OFNR 2.0mm Fiber Patch Cable

$12.60$42.00

Specifications:
Connector Type LC/UPC to LC/UPC
Fiber Grade G.657.A1 (Compatible with G.652.D)
Fiber Mode OS2 9/125μm
Wavelength 1310/1550nm
Insertion Loss ≤0.3dB
Return Loss ≥50dB
Min. Bend Radius (Fiber Core) 10mm
Min. Bend Radius (Fiber Cable) 10/5D (Dynamic/Static)
Attenuation at 1310 nm 0.36 dB/km
Attenuation at 1550 nm 0.22 dB/km
Fiber Count Duplex
Cable Diameter 2.0mm
Cable Jacket PVC
Polarity A (Tx) to B (Rx)
Operating Temperature -20~70°C
Storage Temperature-40~80°C

10/5D Min. Bend Radius

The G.657.A1 fiber allows tighter cable bends for slack storage and routing.

Zirconia Ceramic Ferrule

The precision ferrules can reach up to 500 times insertion lifespan.

90-150N Tensile Strength

The pull-resistant cable prevents cable breaking and prolongs the service life.

SKU: P2P24506 Category:

High Quality and Cost-effective 9/125μm Single Mode Bend Insensitive Fiber Optic Cable

The 9/125μm single mode fiber optic cable is suitable for enterprise network, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed. It meets RoHS compliant, and the fiber patch cord is optically tested for insertion loss to ensure high quality.

This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

Patch Cord Lengths

.5m (1.6'), 1m (3'), 1.5m (5'), 2m (7'), 3m (10'), 4m (13'), 5m (16'), 7m (23'), 8m (26'), 10m (33'), 15m (49'), 20m (66'), 25m (82'), 30m (98')
