12 Port LC Multimode OM3 Loaded Patch Panel Kit

12 Port LC Multimode OM3 Loaded Patch Panel Kit

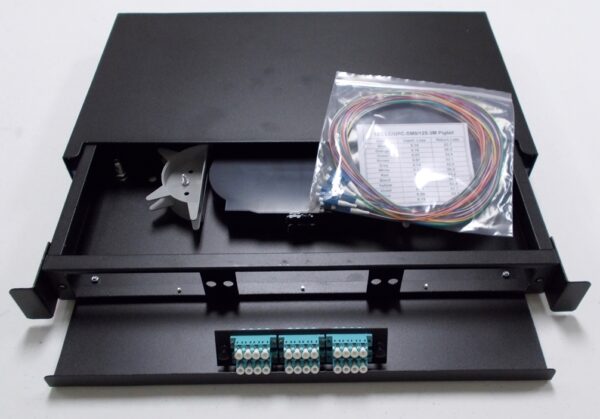

Plugsters Pre-Loaded 12 Fiber LC Multimode OM3 Patch Panel includes a 1U Fiber Optic Patch Panel loaded with a 12 port Multimode LC Adapter plate and a fiber optic splice tray. Also included is a pack of 60mm splice sleeves and a 12 pack of Multimode 50/125µm LC Fiber Optic Pigtails. This Pre-Loaded 1U Patch Panel comes with three adapter plates for easy expansion without the need to purchase more panels. Any unused adapter plate slots are covered with a blank plate to protect the insides of the patch panel.

Includes:

• 19″ 1U Rack Mount Patch Panel with splice trays
• 12 port LC Adapter Plate
• 12 Pack of 3 meter LC pigtails
• 12 Pack of Splice Sleeves

Our rack mounted fiber patch panels accommodate 3 or 6 modular panels and are equipped with routing guides to limit bend radius and enhance strain-relief control. The 16-gauge steel with corrosion-resistant black powder finish coat housing provides excellent protection for the inside fibers. Fiber patch panels are made with a pull-out design for easy access to fibers and fiber slice trays. Designed to hold up to 3 fiber optic splice trays in the 1U patch panel and 6 fiber optic splice trays in the 2U patch panel.

Features:

• 19-inch standard size, light in weight and robust structure
• Pull-out design for easy fiber and splice access
• Changeable modules inside
• Improved design to assure fiber optic cable bend radius not less than 40mm

Loaded 1U Patch Panel Kits with pigtails from 6 ports to 36 ports in all connector types LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST and up to 72 ports with LC or LC/APC. 2U Patch Panel Kits with pigtails from 6 ports to 72 ports in all connector types LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST and up to 144 ports with LC or LC/APC. Available in Single Mode 9/125µm, Multimode 62.5/125µm, and Multimode 50/125µm OM3. Call us about availability of custom configurations with mixed connector types for all your patch panel needs.
