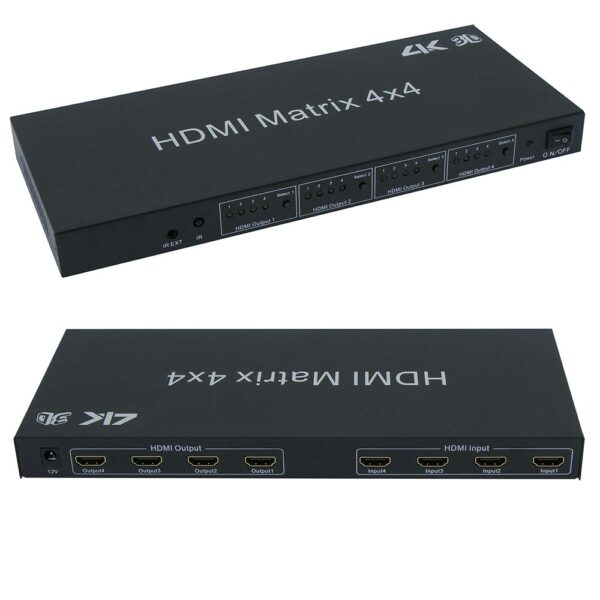

HDMI Matrix 4×4

$231.00

HDMI Matrix 4×4 4K

Specifications:

* True matrix 4×4, (4 input / 4 output)
* HDMI version: High-Speed with 3D support
* HDMI resolution: Up to 4K
* LED display for input /output selection
* Select input/output by IR remote control or manual switch
* HDCP 1.2 compliant
* IR extension supported (needs 110512, 110513, and 110514)
* IR transmitter (110512), IR receiver (110513), IR Adapter (110514) not included
* Support video color format: deep color 36bit
* Support audio format: -DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
* Date transfer speed: 6.75Gbps
* Input Video signal: 5.0Volts P-P
* Max output cable length: 60Ft
* Power adapter : Input: AC (50HZ.60HZ) 100V-240V; Output: DC5V: (included)
* Operating Temperature range: (-15 to +55 Degree)
* Operating Humidity range: 5 to 90%RH (No Condensation)

Product content:

1 — HDMI 4 x 4 matrix switch
1 — Remote control
1 — DC5V 2A power supply
1 — Operation manual

SKU: P2P-110550 Category:

HDMI 4X4 Matrix 4K



Plugsters HDMI 4×4 Matrix is a true matrix 4×4 switch, up to 4 source devices and up to 4 displays can be connected. You can have the same video mirrored on all displays, or use the switch to send different video to each monitor. Input source for each display is selected by pushing the button on the HDMI matrix box, or using the remote control.

IR Extension Function

IR Extension function allows you to extend remote control IR signal through HDMI cable. Say you have a TV and cable box in the living room, and a second TV in the bedroom upstairs. You can change the cable channel either in the living room or in the bedroom upstairs with the cable box remote control. You do not have to go downstairs each time you want to change channels.
