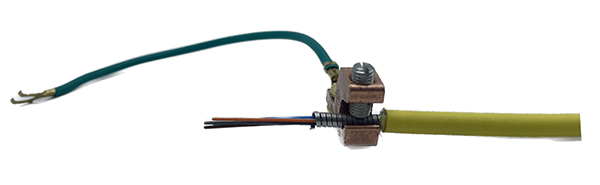

nanoFIBER Grounding Kit for 1 to 48 Strand Stainless Steel Armored Fiber Optic Cables
FEATURES:
- The nanoFiber grounding features an open face design allowing for faster install of the conductor
- Suitable for direct burial in Soil and Concrete UL 467 & CSA C22.2
- For use with Armored nanoFiber 1 to 48 strand
- Stainless steel set screw
- 8 inch 12AWG Grounding Pigtail
- cULus Listed
SPECIFICATIONS:
| Material | Finish | Length (L) | Width (W) | Height (H) | Hole Size | Thread
Size |
Conductor
Size |
|
|
Copper, Stainless Steel 304 (EN 1.4301) |
Copper |
1.040″ |
0.390″ |
0.760″ |
0.220″ |
1/4″ NF |
#12 Stranded |
