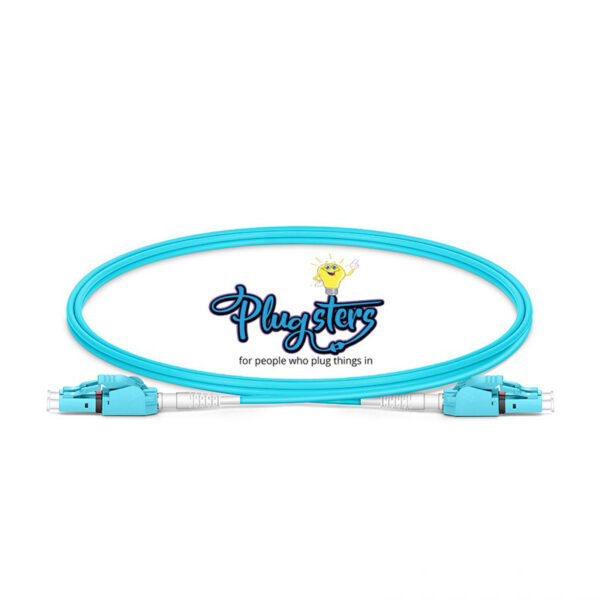

OM4 Multimode Duplex Switchable Clip Uniboot LC/UPC to LC/UPC Patch Cables

OM4 Multimode Duplex Switchable Clip Uniboot LC/UPC to LC/UPC Patch Cables

$61.50 – $144.00

Specifications:

Connector Type: LC to LC (Senko)

Polish Type: UPC to UPC

Fiber Mode: OM4 50/125μm

Fiber Count: Duplex

Fiber Grade: Bend Insensitive

Minimum Bend Radius: 7.5mm

Cable Diameter: 2.0mm

Cable Jacket: PVC

Insertion Loss: ≤0.2dB

Return Loss: ≥30dB

Pull-out Force: 100N

Durability: 500 Cycles

Operating Temperature: -10~70°C

Storage Temperature: -20~70°C





Carrier-grade Cable Ensures Transmission Quality

Superior cable assemblies reduce light loss during cable bending and easily meet your diverse cabling requirements.

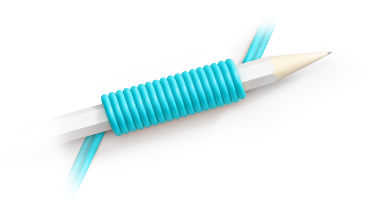

20/10D Min. Bend Radius

Bend insensitive fiber allows tighter cable bends for slack storage and routing.

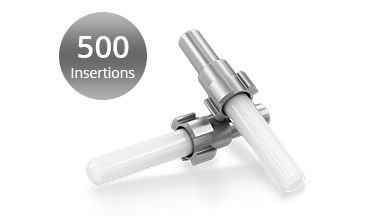

Zirconia Ceramic Ferrule

The precision ferrules can reach up to 500 times insertion lifespan.

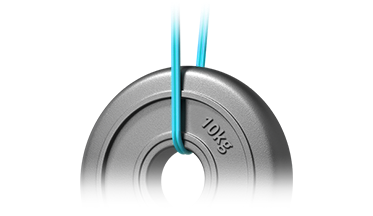

90-150N Tensile Strength

The pull-resistant cable prevents cable breaking and prolongs the service life.

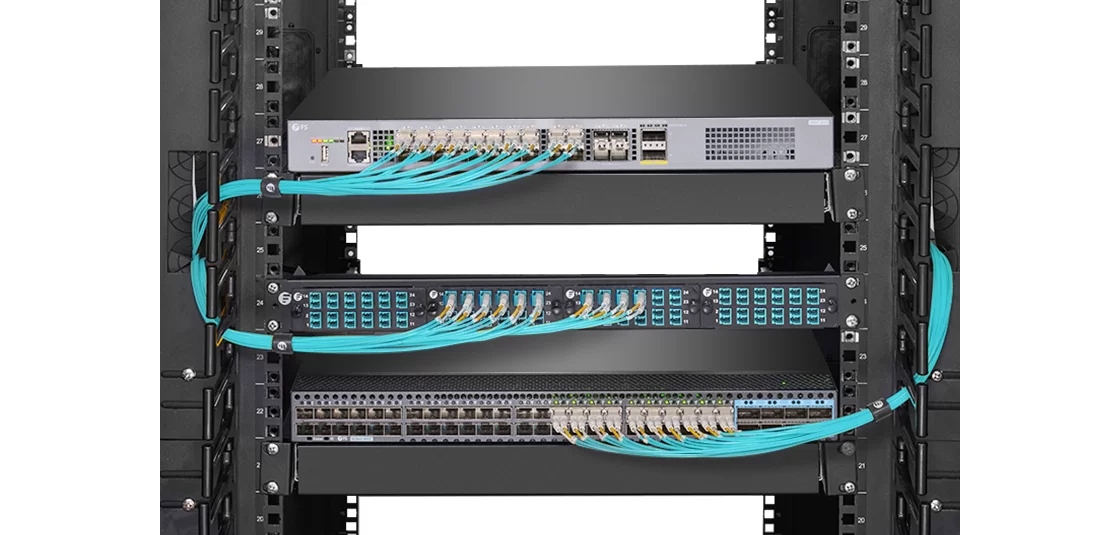

Spine-Leaf Architecture Achieve Larger Network Scale
Prevent network bottlenecks, reduce network latency, and expanding bandwidth and scalability for future network expansion.
SKU: P2POM4LCSWC Category:

OM4 Multimode Duplex Switchable Clip Uniboot LC/UPC to LC/UPC

OM4 Multimode PVC (OFNR) 2.0mm Fiber Optic Patch Cable

The 50/125μm OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.

This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10/40/100G Ethernet connections and is the preferred fiber specification for 40/100G applications.

Patch Cord Lengths

.5m (1.6'), 1m (3'), 1.5m (5'), 2m (7'), 3m (10'), 4m (13'), 5m (16'), 7m (23'), 8m (26'), 10m (33'), 15m (49'), 20m (66'), 25m (82'), 30m (98')
