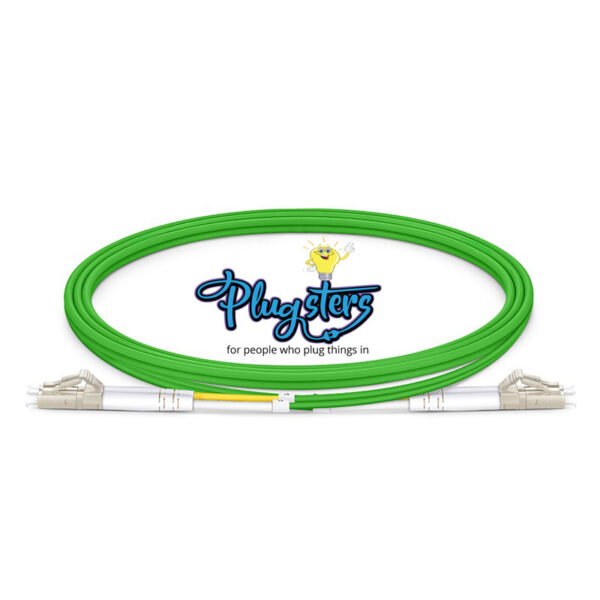

OM5 Multimode Duplex LC/UPC to LC/UPC Patch Cables

OM5 Multimode Duplex LC/UPC to LC/UPC Patch Cables

$16.80 – $93.00

OM5 wide band multimode bend insensitive fiber optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s and 100 Gb/s and reduced fiber counts for higher speeds.

OM5 meets TIA-492AAAE and draft IEC 60793-2-10 A1a.4 requirements while completely backward compatible with existing OM4 networks and applications. It meets RoHS compliant and the fiber patch cord is optically tested for insertion loss to ensure high quality.

SKU: P2P-OM5LCDX Categories: ,

Description

OM5 Multimode Duplex  LC/UPC to LC/UPC

High Quality and Cost-effective 50/125μm OM5 Wideband Multimode Bend Insensitive Fiber Optic Cable

Specifications:

Connector Type: LC/UPC to LC/UPC

Fiber Grade: Bend Insensitive

Fiber Count: Duplex

Fiber Mode: OM5 50/125μm

Wavelength: 440/1300nm

100G Ethernet Distance: 150m at 850nm

Insertion Loss: ≤0.3dB

Return Loss: ≥30dB

Min. Bend Radius: (Fiber Core) 7.5mm

Min. Bend Radius: (Fiber Cable) 20/10D (Dynamic/Static)

Attenuation at 850nm: 3.0 dB/km

Attenuation at 1300nm: 1.0 dB/km

Cable Jacket: PVC

Cable Diameter: 2.0mm

Polarity: A (Tx) to B (Rx)

Operating Temperature: -20~70°C

Carrier-grade Cable Ensures Transmission Quality
Superior cable assemblies reduce light loss during cable bending and easily meet your diverse cabling requirements.

20/10D Min. Bend Radius

Bend insensitive fiber allows tighter cable bends for slack storage and routing.

Zirconia Ceramic Ferrule

The precision ferrules can reach up to 500 times insertion

90-150N Tensile Strength

The pull-resistant cable prevents cable breaking and prolongs the service life.

OM5 Fiber – Ready for Next-Generation Wideband Networks

OM5 wideband multimode fiber allows to transmit multiple signals on one fiber, increasing the bandwidth of a single fiber by a factor of at least four.

Additional information

Patch Cord Lengths

.5m (1.6′), 1.5m (5′), 10m (33′), 15m (49′), 1m (3′), 20m (66′), 25m (82′), 2m (7′), 30m (98′), 3m (10′), 4m (13′), 5m (16′), 7m (23′), 8m (26′)
